ugdk::graphic::Drawable Class Reference

#include <ugdk/graphic/drawable.h>

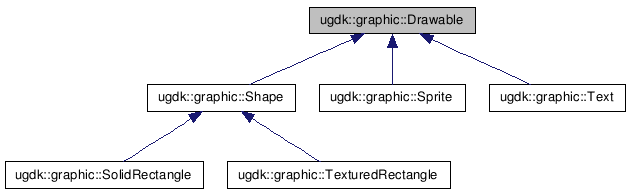

Inheritance diagram for ugdk::graphic::Drawable:

Collaboration diagram for ugdk::graphic::Drawable:

Public Types
enum	HookPoint {   TOP_LEFT, TOP, TOP_RIGHT, LEFT,   CENTER, RIGHT, BOTTOM_LEFT, BOTTOM,   BOTTOM_RIGHT }

Public Member Functions
virtual	~Drawable ()
virtual void	Update (double dt)=0
virtual void	Draw () const =0
virtual const Vector2D &	size () const =0
void	set_hotspot (const Vector2D &hotspot)
void	set_hotspot (const HookPoint &hook)
const double	width () const
const double	height () const
const Vector2D &	hotspot () const

Protected Member Functions
	Drawable ()

Protected Attributes
ugdk::Vector2D	hotspot_

Member Enumeration Documentation

enum ugdk::graphic::Drawable::HookPoint

Enumerator:

TOP_LEFT
TOP
TOP_RIGHT
LEFT
CENTER
RIGHT
BOTTOM_LEFT
BOTTOM
BOTTOM_RIGHT

Constructor & Destructor Documentation

virtual ugdk::graphic::Drawable::~Drawable ( )

inlinevirtual

ugdk::graphic::Drawable::Drawable ( )

inlineprotected

Member Function Documentation

virtual void ugdk::graphic::Drawable::Draw ( ) const

pure virtual

Implemented in ugdk::graphic::Text, ugdk::graphic::Sprite, ugdk::graphic::TexturedRectangle, and ugdk::graphic::SolidRectangle.

const double ugdk::graphic::Drawable::height ( ) const

inline

const Vector2D& ugdk::graphic::Drawable::hotspot ( ) const

inline

void ugdk::graphic::Drawable::set_hotspot ( const Vector2D &  hotspot )

inline

void ugdk::graphic::Drawable::set_hotspot ( const HookPoint &  hook )

inline

virtual const Vector2D& ugdk::graphic::Drawable::size ( ) const

pure virtual

Implemented in ugdk::graphic::Text, ugdk::graphic::Sprite, ugdk::graphic::TexturedRectangle, and ugdk::graphic::SolidRectangle.

virtual void ugdk::graphic::Drawable::Update ( double  dt )

pure virtual

Implemented in ugdk::graphic::Text, ugdk::graphic::Sprite, ugdk::graphic::TexturedRectangle, and ugdk::graphic::SolidRectangle.

const double ugdk::graphic::Drawable::width ( ) const

inline

Member Data Documentation

ugdk::Vector2D ugdk::graphic::Drawable::hotspot_

protected

---

The documentation for this class was generated from the following file:

• src/ugdk/graphic/drawable.h
