ugdk::graphic::opengl::VertexBuffer Class Reference

#include <ugdk/graphic/opengl/vertexbuffer.h>

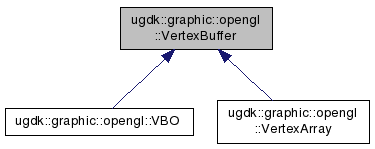

Inheritance diagram for ugdk::graphic::opengl::VertexBuffer:

Classes
class	Bind
class	Mapper

Public Member Functions
	VertexBuffer (size_t size, GLenum target, GLenum usage)
virtual	~VertexBuffer ()
size_t	getSize () const
GLenum	getTarget () const
GLenum	getUsage () const
virtual void *	map ()=0
virtual void	unmap ()=0
virtual void	bind () const =0
virtual void	unbind () const =0
virtual void	fill (size_t offset, size_t size, const void *data)=0
virtual const void *	getPointer (size_t offset) const =0

Static Public Member Functions
static VertexBuffer *	Create (size_t size, GLenum target, GLenum usage)
static std::shared_ptr< const VertexBuffer >	CreateDefaultShared ()
static const VertexBuffer *	CreateDefault ()

Detailed Description

VertexBuffer is an abstraction over VBOs (Vertex Buffer Objecys), which falls back to regular vertex arrays if VBOs are not supported.

This allows code to take advantage of VBOs where available, but still work on older systems where it's not available. Everyone's happy.

The class is (for now) meant for internal use.

Constructor & Destructor Documentation

ugdk::graphic::opengl::VertexBuffer::VertexBuffer	(	size_t	size,
		GLenum	target,
		GLenum	usage
	)

Constructor.

Parameters

size	The size of the VertexBuffer in bytes.
target	The target VertexBuffer object, e.g. GL_ARRAY_BUFFER.
usage	Usage hint, e.g. GL_DYNAMIC_DRAW.

virtual ugdk::graphic::opengl::VertexBuffer::~VertexBuffer ( )

virtual

Destructor. Does nothing, but must be declared virtual.

Member Function Documentation

virtual void ugdk::graphic::opengl::VertexBuffer::bind ( ) const

pure virtual

Bind the VertexBuffer to the specified target. (GL_ARRAY_BUFFER, GL_ELEMENT_ARRAY_BUFFER).

Parameters

target

GL_ARRAY_BUFFER or GL_ELEMENT_ARRAY_BUFFER.

Implemented in ugdk::graphic::opengl::VBO, and ugdk::graphic::opengl::VertexArray.

static VertexBuffer* ugdk::graphic::opengl::VertexBuffer::Create ( size_t  size, GLenum  target, GLenum  usage  )

static

Create a new VertexBuffer (either a plain vertex array, or a VBO), based on what's supported on the system.

If VBOs are not supported, a plain vertex array will automatically be created and returned instead.

Parameters

size	The size of the VertexBuffer (in bytes).
target	GL_ARRAY_BUFFER, GL_ELEMENT_ARRAY_BUFFER.
usage	GL_DYNAMIC_DRAW, etc.

Returns

A new VertexBuffer.

static const VertexBuffer* ugdk::graphic::opengl::VertexBuffer::CreateDefault ( )

static

static std::shared_ptr<const VertexBuffer> ugdk::graphic::opengl::VertexBuffer::CreateDefaultShared ( )

static

virtual void ugdk::graphic::opengl::VertexBuffer::fill ( size_t  offset, size_t  size, const void *  data  )

pure virtual

Fill a portion of the buffer with data.

The VertexBuffer must be bound to use this function.

Parameters

offset	The offset in the VertexBuffer to store the data.
size	The size of the incoming data.
data	Pointer to memory to copy data from.

Implemented in ugdk::graphic::opengl::VBO, and ugdk::graphic::opengl::VertexArray.

virtual const void* ugdk::graphic::opengl::VertexBuffer::getPointer ( size_t  offset ) const

pure virtual

Get a pointer which represents the specified byte offset.

Parameters

offset

The byte offset. (0 is first byte).

Returns

A pointer which represents the offset.

Implemented in ugdk::graphic::opengl::VBO, and ugdk::graphic::opengl::VertexArray.

size_t ugdk::graphic::opengl::VertexBuffer::getSize ( ) const

inline

Get the size of the VertexBuffer, in bytes.

Returns

The size of the VertexBuffer.

GLenum ugdk::graphic::opengl::VertexBuffer::getTarget ( ) const

inline

Get the target buffer object.

Returns

The target buffer object, e.g. GL_ARRAY_BUFFER.

GLenum ugdk::graphic::opengl::VertexBuffer::getUsage ( ) const

inline

Get the usage hint for this VertexBuffer.

Returns

The usage hint, e.g. GL_DYNAMIC_DRAW.

virtual void* ugdk::graphic::opengl::VertexBuffer::map ( )

pure virtual

Map the VertexBuffer to client memory.

This can be faster for large changes to the buffer. For smaller changes, see fill().

The VertexBuffer must be bound to use this function.

Returns

A pointer to memory which represents the buffer.

Implemented in ugdk::graphic::opengl::VBO, and ugdk::graphic::opengl::VertexArray.

virtual void ugdk::graphic::opengl::VertexBuffer::unbind ( ) const

pure virtual

Unbind a prevously bound VertexBuffer.

Implemented in ugdk::graphic::opengl::VBO, and ugdk::graphic::opengl::VertexArray.

virtual void ugdk::graphic::opengl::VertexBuffer::unmap ( )

pure virtual

Unmap a previously mapped VertexBuffer. The buffer must be unmapped when used to draw elements.

The VertexBuffer must be bound to use this function.

Implemented in ugdk::graphic::opengl::VBO, and ugdk::graphic::opengl::VertexArray.

---

The documentation for this class was generated from the following file:

• modules/ugdk-2d/include/ugdk/graphic/opengl/vertexbuffer.h
